2010 Harley-Davidson Trike Street Glide FLHXXX 47,767 Miles

Stock #851612T
Your Price: $16,995

193 people have recently viewed it.
In Stock Hi, my name is and I'm interested in this 2010 Harley-Davidson Trike Street Glide FLHXXX 47,767 Miles . I'm in the area and you can reach me at or on my phone at .




  • Status:
    Pre-Owned
  • Vehicle:
    2010 Harley-Davidson Trike Street Glide FLHXXX 47,767 Miles
  • VIN:
    1HD1MBM15AB851612
  • Model Number:
    FLHXXX
  • Mileage:
    47,767 miles
  • Color:
    Red Hot Sunglo
  • Stock Number:
    851612T
  • Title:
    Clear
  • Location:
    Harley-Davidson of Madison
  • Warranty:
    As Is

AUDIO & COMMUNICATION

  • Brand Name:
    Harman/Kardon
  • Number Of Discs:
    1
  • Number Of Speakers:
    2

BRAKES

  • Brake Brand Name:
    Brembo®
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Dual Hydraulic Disc

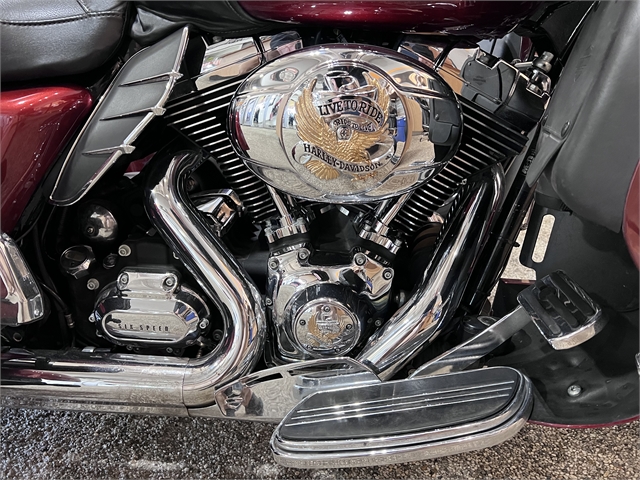

ENGINE

  • Bore (in):
    3.88
  • Bore (mm):
    98.55
  • CAN Liters Per Kilometer (City):
    7.1
  • CAN Liters Per Kilometer (Hwy):
    4.9
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.6
  • Cooling:
    Air
  • Cylinders:
    2
  • Displacement (cc):
    1687.9
  • Displacement (ci):
    103
  • Engine Brand Name:
    Twin Cam 103™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.38
  • Stroke (mm):
    111.25
  • Torque (Ft Lbs):
    101
  • Torque (Nm):
    136.9
  • Torque RPM:
    3500
  • US Miles Per Gallon (City):
    33
  • US Miles Per Gallon (Hwy):
    48
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Body Material:
    Fiberglass
  • Chassis Protectors:
    Yes
  • Engine Case Guard:
    Yes
  • Exhaust Guard:
    Yes
  • Floor Board Location:
    Driver and Passenger
  • Fork Guards:
    Yes
  • Frame:
    Steel
  • Hand Guards:
    Yes
  • Side Cover:
    Yes

GLASS

  • Folding:
    Yes
  • Height:
    Low
  • Tinted:
    Yes
  • Windshield Brand:
    Lexan®

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    26.8
  • Seat Height (mm):
    680.7
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

STORAGE

  • Bag Liner Material:
    Vinyl

SUSPENSION

  • Air Adjustable:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Type:
    Telescopic Fork
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Independent
  • Steering Damper:
    Yes

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    485.8
  • Dry Weight (lbs):
    1071
  • Engine Displacement to Weight (cc):
    1.58
  • Fuel Capacity (gal):
    6
  • Fuel Capacity (l):
    22.7
  • Ground Clearance (in):
    4.7
  • Ground Clearance (mm):
    119.4
  • Length (ft):
    8.82
  • Length (ft/ft):
    8
  • Length (ft/in):
    9.8
  • Length (in):
    105.8
  • Length (mm):
    2687.3
  • Payload Capacity (kgs):
    10.3
  • Payload Capacity (lbs):
    22.7
  • Storage Capacity (cuft):
    0.12
  • Wet Weight (kg):
    503.5
  • Wet Weight (lbs):
    1110
  • Wheelbase (in):
    66.6
  • Wheelbase (mm):
    1691.6

TRANSMISSION

  • Gear Ratio (1):
    9.878
  • Gear Ratio (2):
    6.847
  • Gear Ratio (3):
    5.086
  • Gear Ratio (4):
    4.118
  • Gear Ratio (5):
    3.51
  • Gear Ratio (6):
    2.96
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop® MT90B16 72H
  • Front Tire Aspect Ratio:
    90
  • Front Tire Speed Rating:
    72H
  • Front Wheel Diameter:
    16
  • Rear Tire (Full Spec):
    Dunlop® 205/65 R15
  • Rear Tire Aspect Ratio:
    65
  • Rear Tire Width:
    205
  • Rear Wheel Diameter:
    15
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
