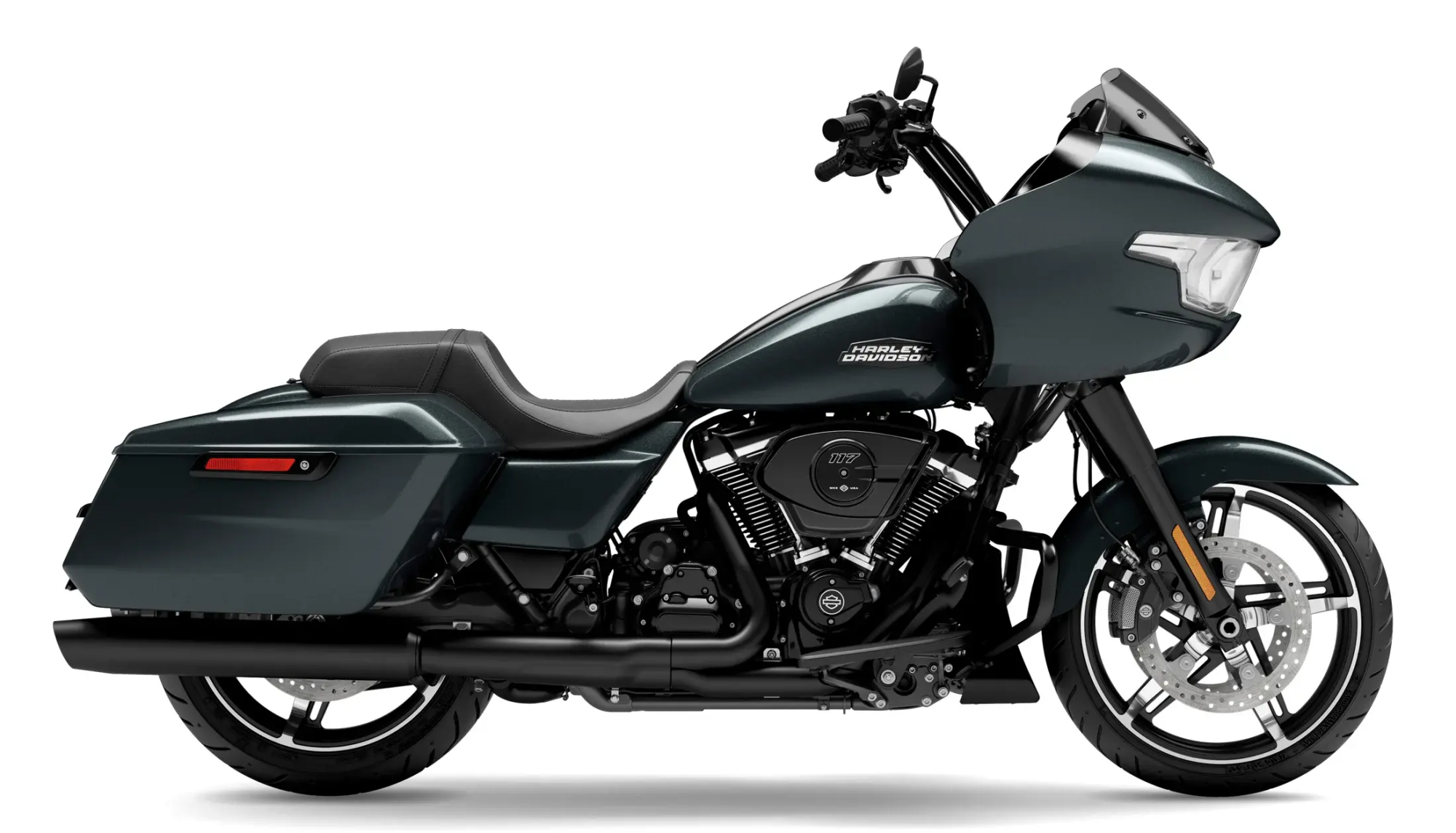

‹ Home › Inventory › 2025 FLTRX Harley-Davidson® Road Glide® Iron Horse Metallic - Black Finish

The Road Glide has an aerodynamic Sharknose fairing and a liquid-cooled Milwaukee-Eight^® 117 engine that produces 130 ft-lb of torque, while reduced weight makes handling more responsive. With customizable ride modes, Bluetooth connectivity, and a 12.3-inch touchscreen display, the Road Glide offers a refined mix of tech, style, and power.

Specifications

Dimensions

add remove
- Length:

  94.9 in
- Seat height, unladen:

  28.3 in
- Rake (steering head):

  26
- Trail:

  6.8 in
- Wheelbase:

  64.0 in
- Tires, front specifications:

  130/60B19 M/C 61H
- Tires, rear specifications:

  180/55B18 M/C 80H
- Fuel Capacity:

  6.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  802 lbs
- Weight, in running order:

  838 lb
- Luggage capacity – volume:

  2.42 cu ft (0.069 m3)
- Tire, type:

  Dunlop® Harley-Davidson Series, bias blackwall front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-1-2 dual exhaust with tapered mufflers
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  129.8 ft-lb
- Engine torque (RPM):

  3250
- Lean angle, right (deg.):

  32
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  44 mpg (5.3 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.593
- Gear ratios (overall) 2nd:

  6.65
- Gear ratios (overall) 3rd:

  4.938
- Gear ratios (overall) 4th:

  4
- Gear ratios (overall) 5th:

  3.407
- Gear Ratios (overall) 6th:

  2.875
Chassis

add remove
- Front fork:

  1.9 in. Dual Bending Valve
- Rear shocks:

  3 in. Dual Outboard Emulsion with Preload Adjustability
- Wheels, front type:

  Cast aluminum
- Wheels, rear type:

  Cast aluminum
- Brakes, type:

  Dual floating rotors (front), fixed rotor (rear)
- Brakes, caliper type:

  1.3 in., 4-piston fixed dual axially mounted front, and single axially mounted rear
Infotainment

add remove
- Screen size:

  12.3 in
- Infotainment system:

  Skyline™ OS
- Type:

  Full Color TFT
- Watts per channel:

  50
- Speakers:

  2
- Speaker size:

  Two 5.25 in. fairing speakers
- AM:

  Standard
- FM:

  Standard
- SD Card, Flash Drive and MP3 — via USB Connection:

  Supported
- Languages:

  Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
- Hands-free mobile phone — via Bluetooth:

  Standard
- Voice Recognition Languages: Phone functions only:

  Phone dependent
- Text-to-Speech (TTS) languages:

  Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
- Rider / passenger intercom:

  Standard (passenger headset sold separately), VOX is available for HD headsets
- Vehicle information screen:

  Standard
- USB:

  USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage
- Bluetooth:

  Phone/Media Player, Headset
